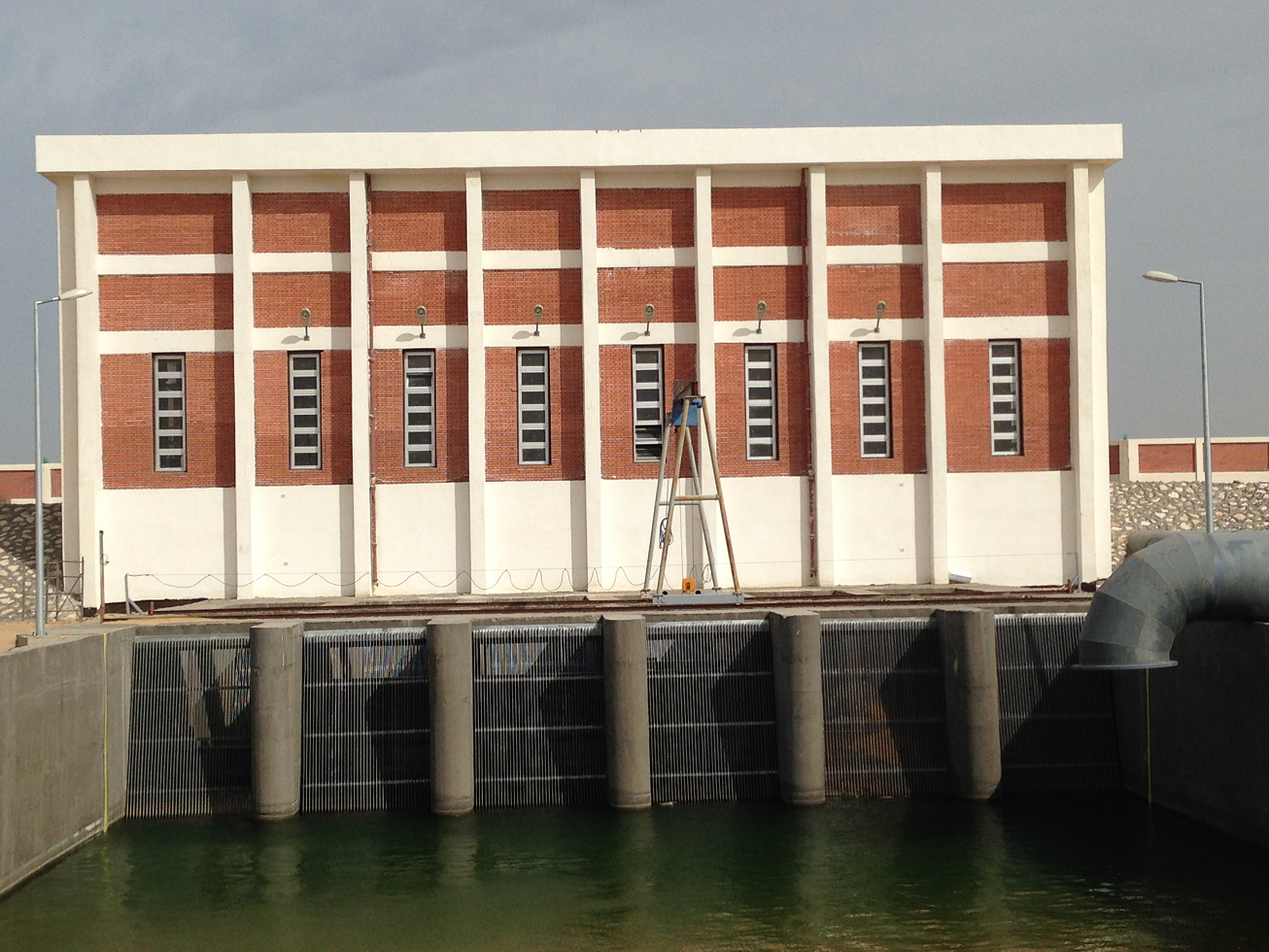

Irrigation Water Pumping Stations

All Mechanical & Electrical Works:

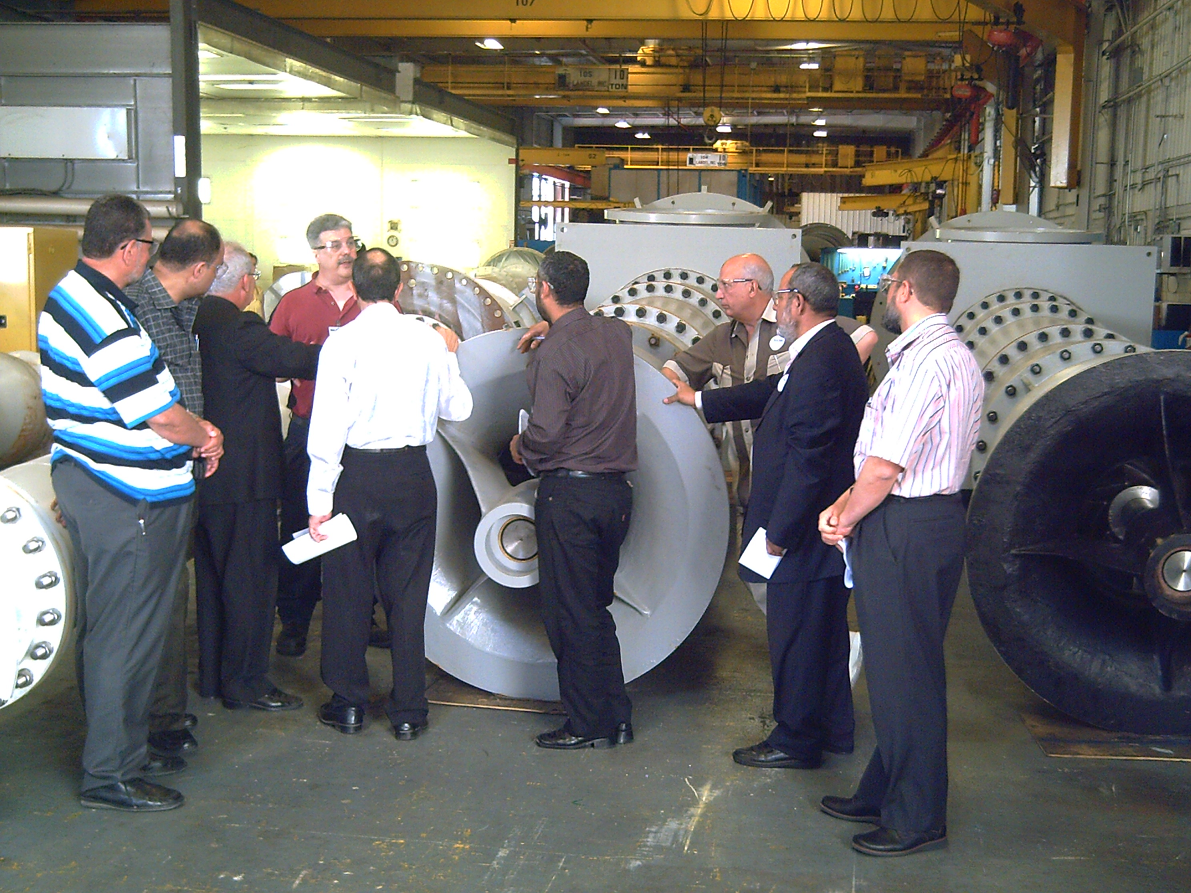

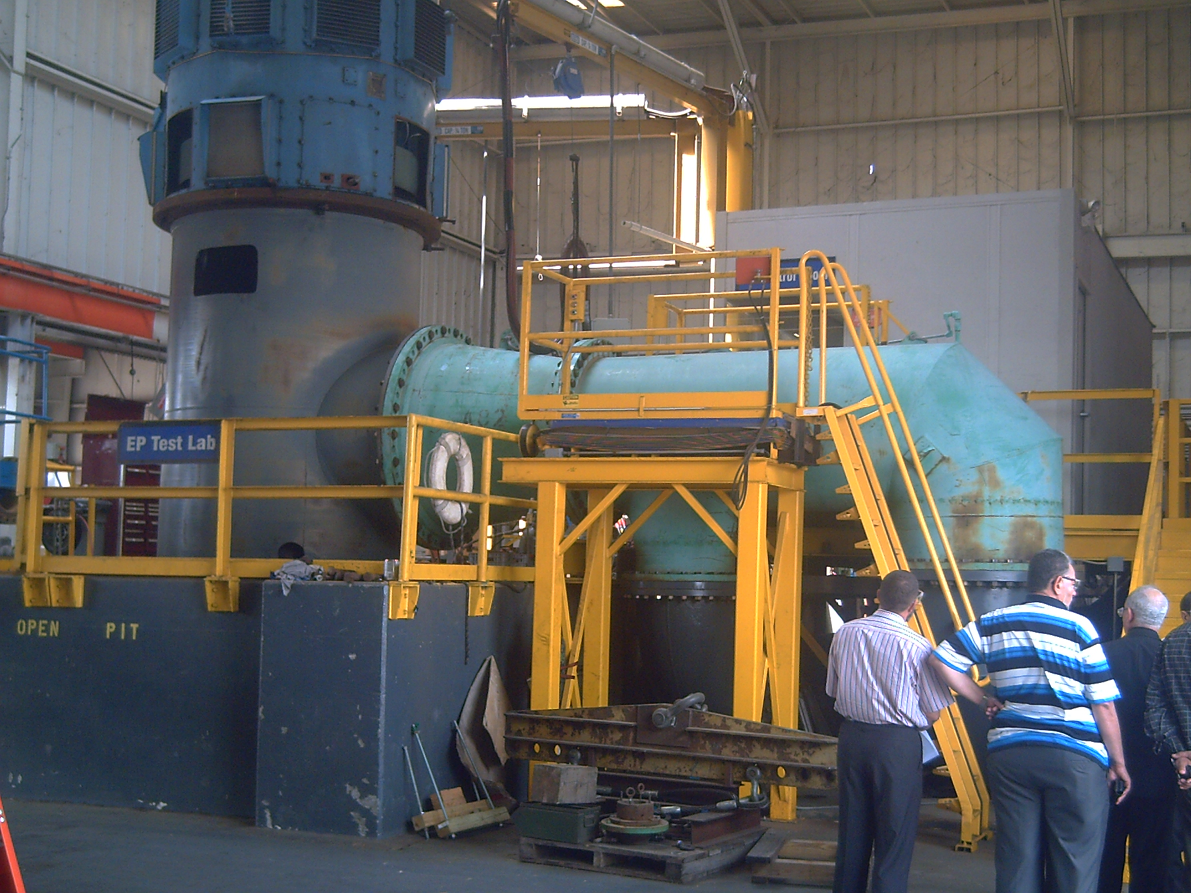

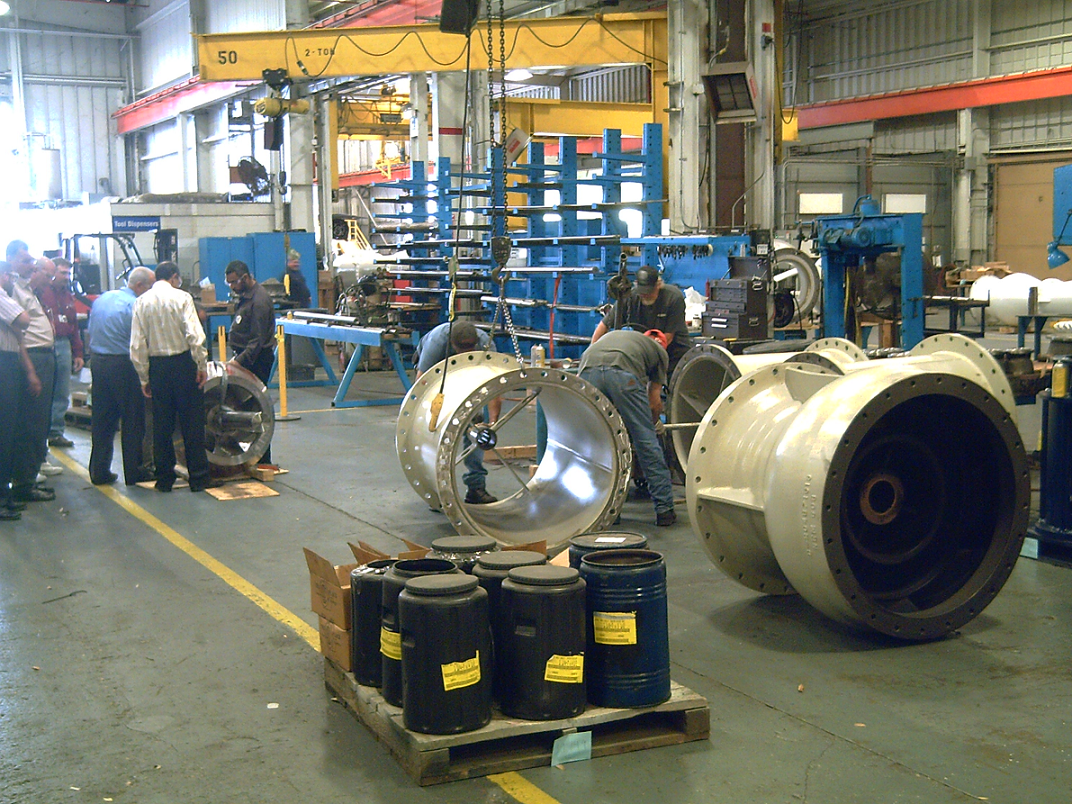

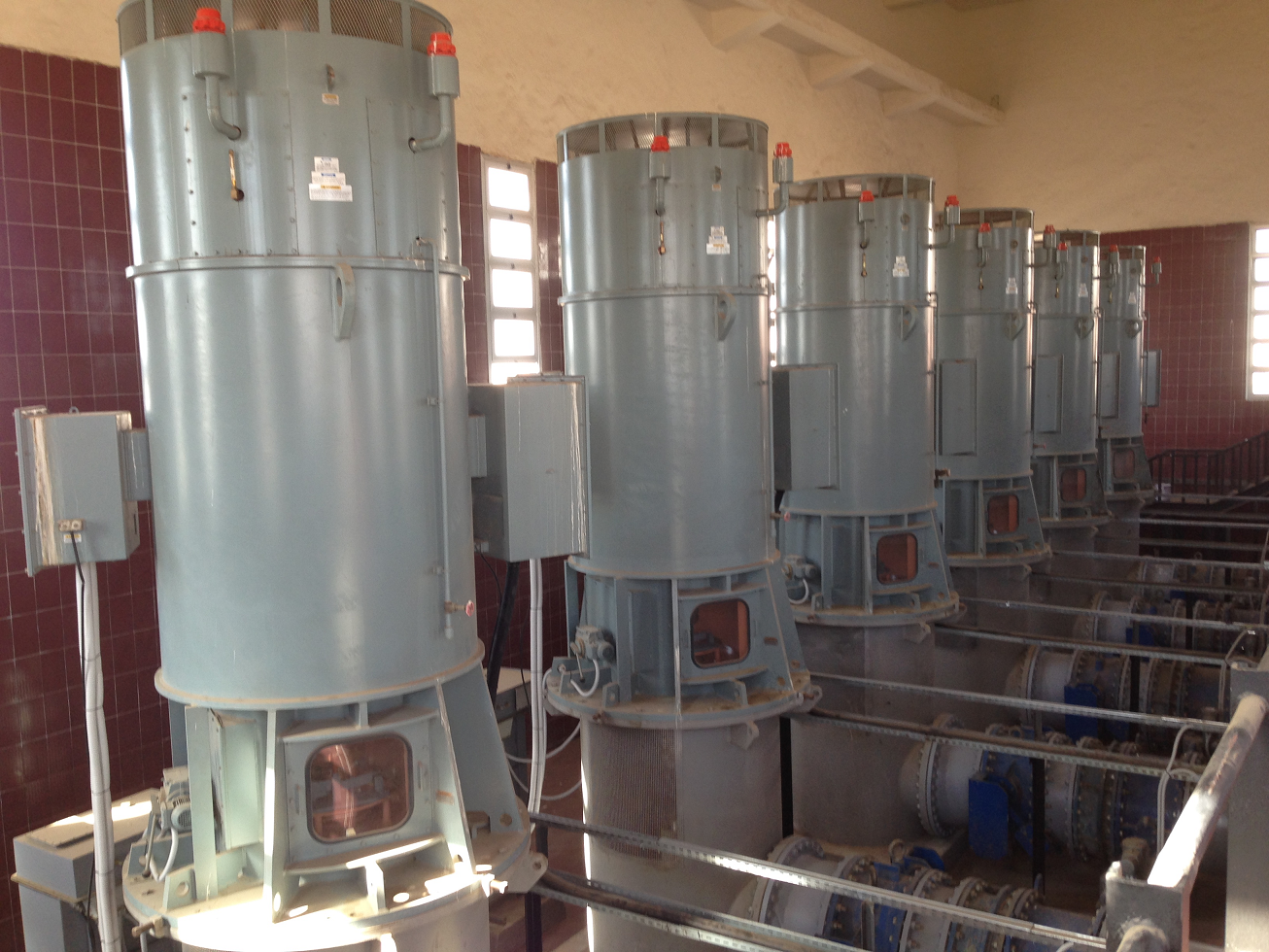

• Main pumping unit : SULZER US. , HYUNDAI Motors, 800 HP
  • No Of Units & Type : ( 5 + 1 ) , Vertical Mixed Flow
  • Discharge Of Each Unit : 1.5 m³/s @ 30 m Head
• Valves :
  • Butterfly Valves DN 1400 mm
  • Butterfly Valves DN 1200 mm
  • Butterfly Valves DN 900 mm
  • Check Valves DN 900 mm
• Delivery pipes ( Coated Steel ) :
  • Main Header DN 2000 mm
  • Pipeline DN 1400 mm
  • Pipeline DN 1200 mm
  • Pump Discharge Pipe DN 900 mm
• Dewatering Pumping Units :
  • No Of Units : 2 Mobile
  • Discharge Of Each Unit : 25 (L/s)
  • Manometric Head : 15 m

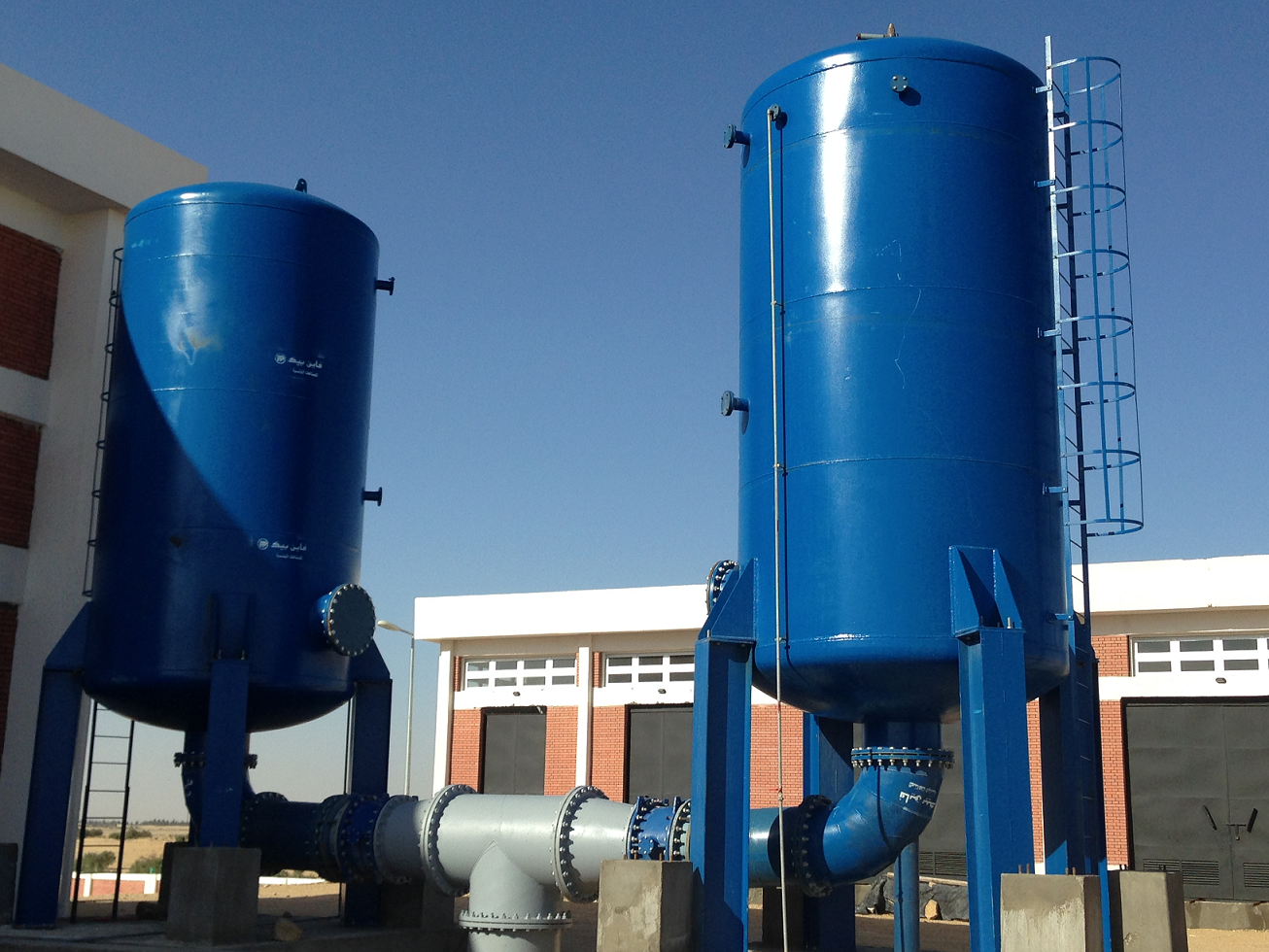

• Water Anti-hammer System :
  • 2 Pressure vessels 26 m³ Each
• Electrical Data :

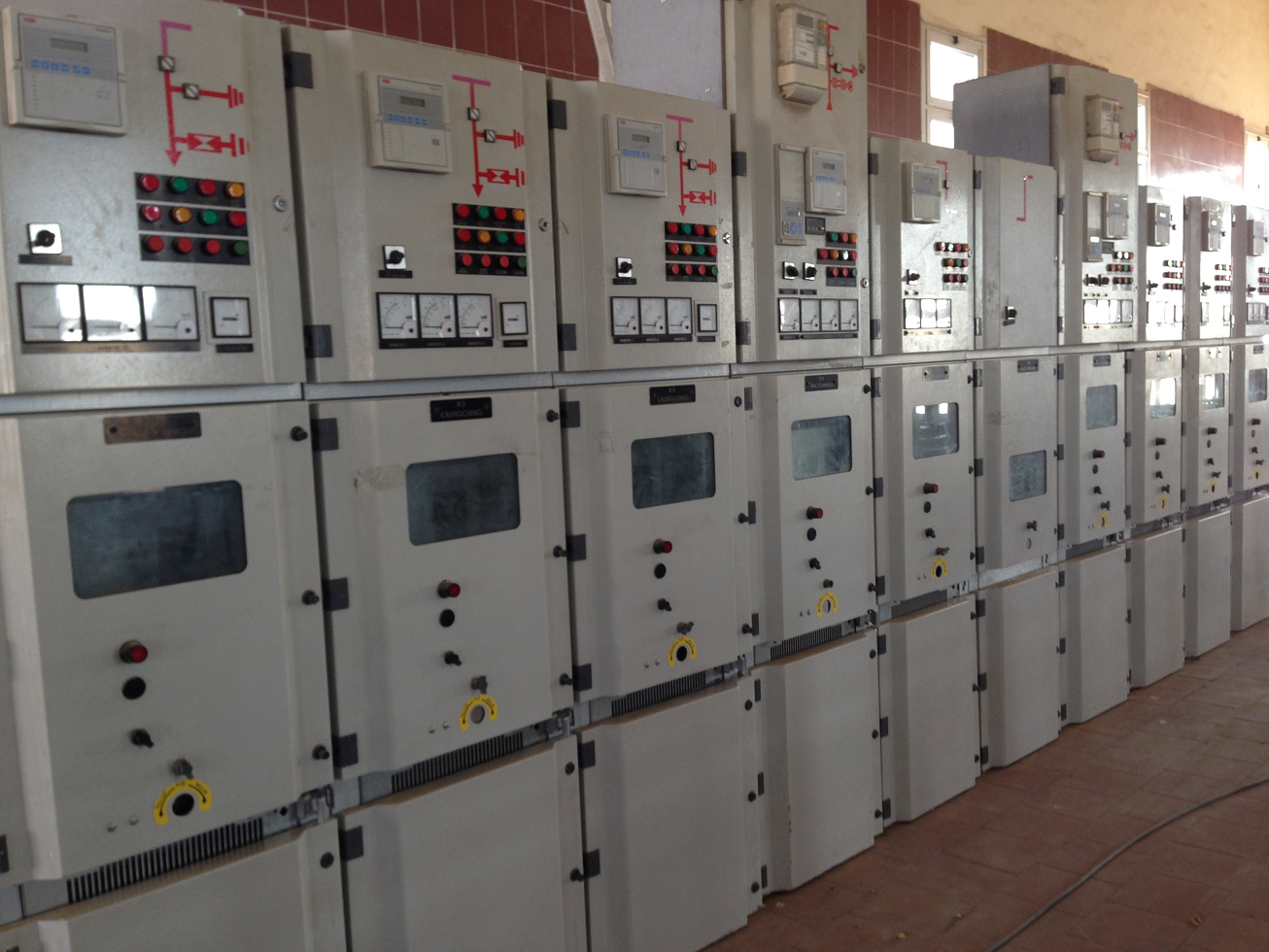

  • M.V Switchgear 22 kV
  • M.V Switchgear 11 kV
  • L.V Switchgear 0.4 kV
  • Oil Immersed Starting Resistance
• Main transformers :
  • 2 x 5000 kVA 22/11 kV
• Auxiliary transformers :
  •  2 x 250 kVA 11/0.4 kV
• Control panels :

Fully Automated Pumping Station
